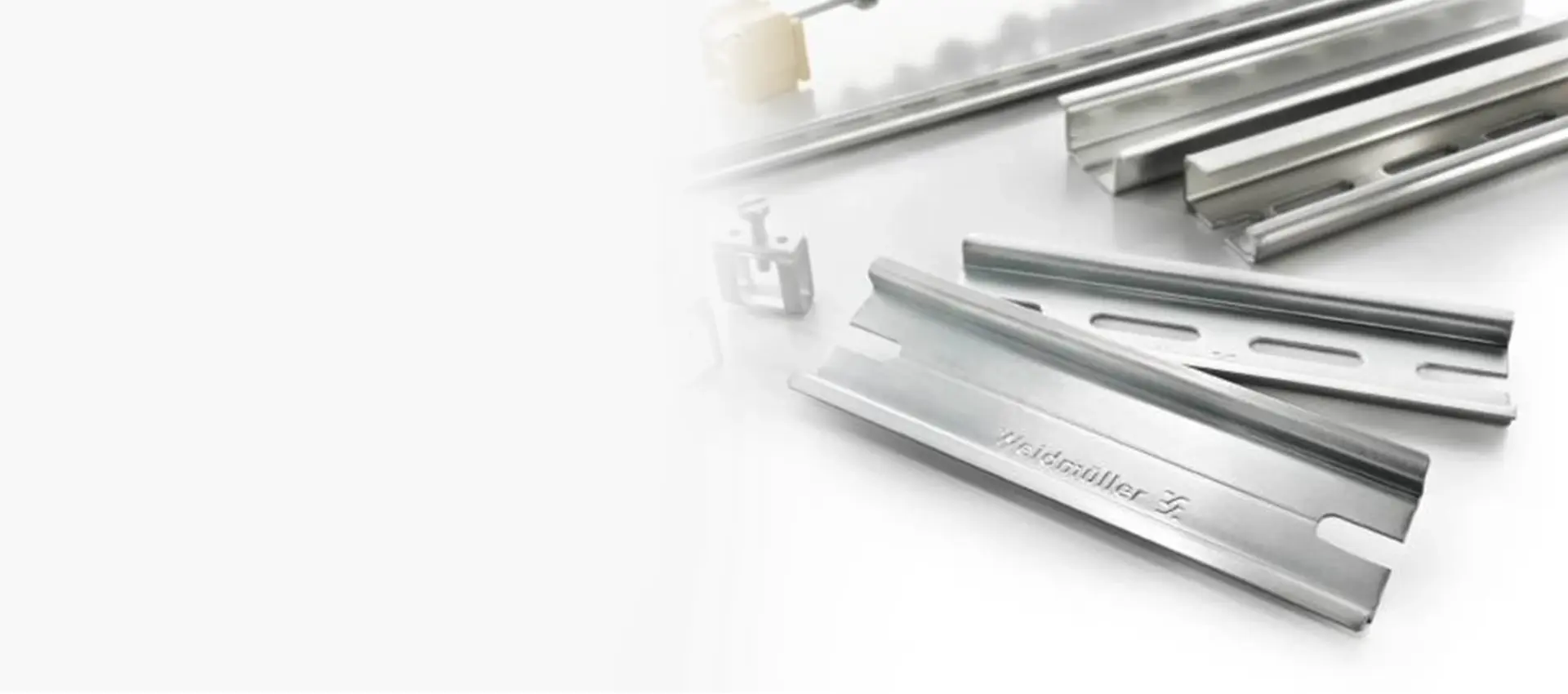

DIN rails TS and mounting rails are one of the few standardized components in electrical switchgears. The DIN rails and C-profiles are used for mounting and fixing electronic and electromechanical components such as terminal blocks, relays or even power supplies.
The electrical properties of mounting rails depend on the design (TS 15, TS 20 or C20 as C-rail / C-profile, TS 27 as C-rail / C-profile rail, TS 32 and G 32 as G-rail and TS 35) and the surface. The punched (hole and slotted versions) and non-perforated versions of the profile rails are made of the raw materials aluminum (alu), galvanized steel and steel passivated, stainless steel, copper or plastic (PVC).

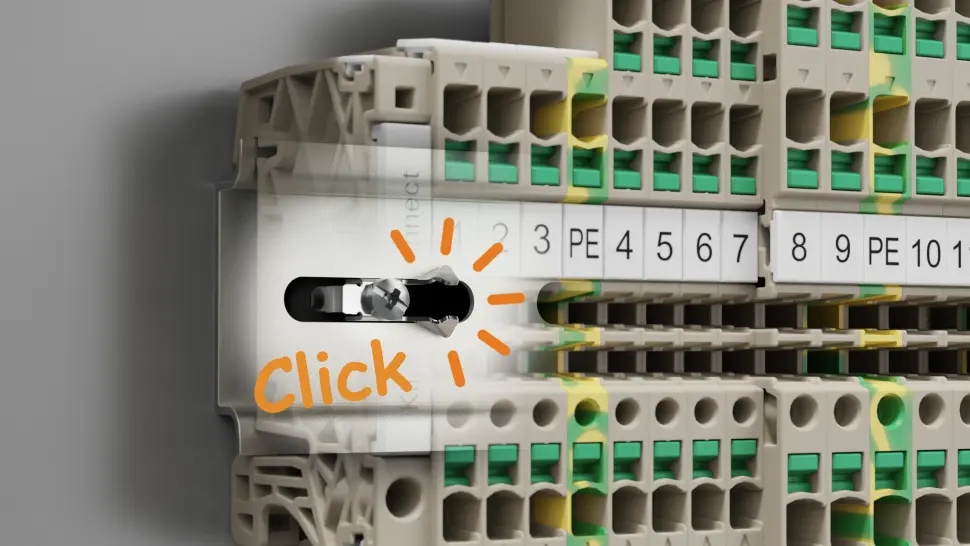

The Klippon® RailSnapper: Your key to simple and secure fastening of your DIN rail. The clever click mechanism offers you maximum security for DIN rail mounting.

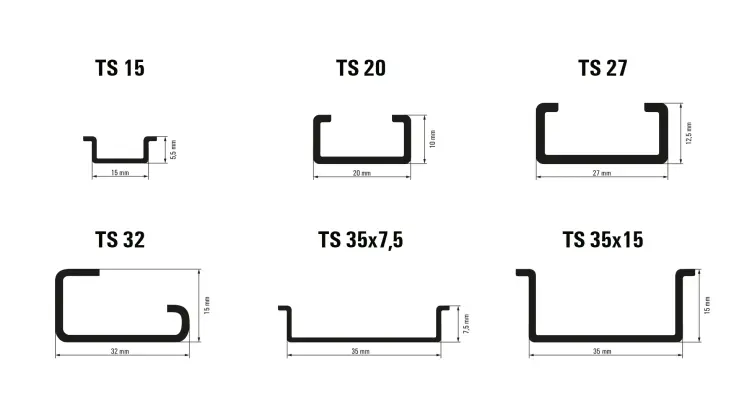

Depending on the industry and market requirements, DIN rails and mounting rails TS differ in various designs and versions. Weidmüller offers the most common profile rails on the market, also according to standard and DIN such as DIN EN 60715, in various lengths and materials:
• TS 15
• TS 20 or C20 as C-rail / C-profile
• TS 27 as C-rail / C-profile
• TS 32 and G 32 as G-rail / G-profile
• TS 35 as TS35x7,5 / TS35x15

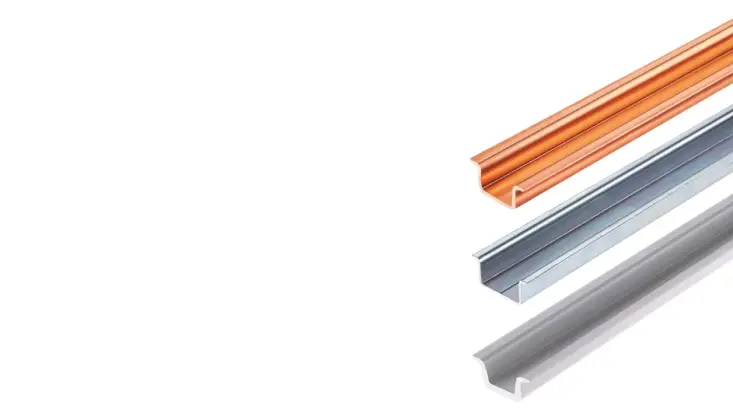

The raw material or the treatment of the profile rails and C-profiles determines the electrical properties and the application area. Weidmüller offers the rails in the following materials and coatings:
• Aluminum (Alu)
• Galvanized steel and steel passivated
• Copper
• Plastic (PVC)

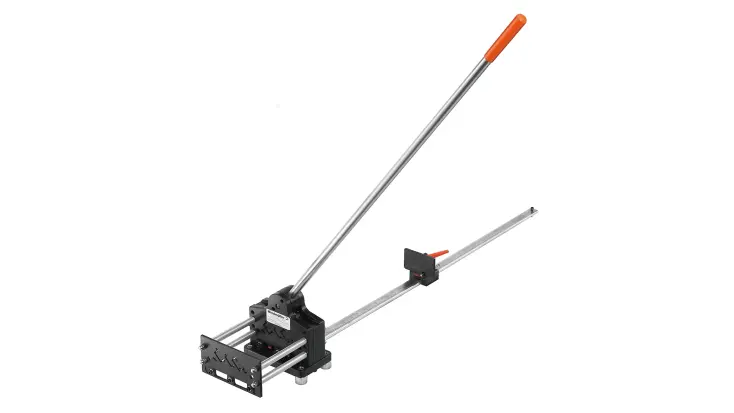

For burr-free cutting and punching of DIN-Rail profile rails, Weidmüller offers rail cutting and punching devices TSLD 5 and TSLD C Profile bars and C-profiles can be easily cut to length and punched without much effort. Other product features of the TSLD are:
• Table-top unit for mounting on workbench or similar workplaces
• Guiding device for 90° angle accurate cutting
• Burr-free cutting of top-hat rails without waste
• Shear plate regrindable
• Integrated length stop (up to 1,000 mm)
Mounting rail supports type TSTW are used for angled mounting of top-hat rails at an angle of 35°.

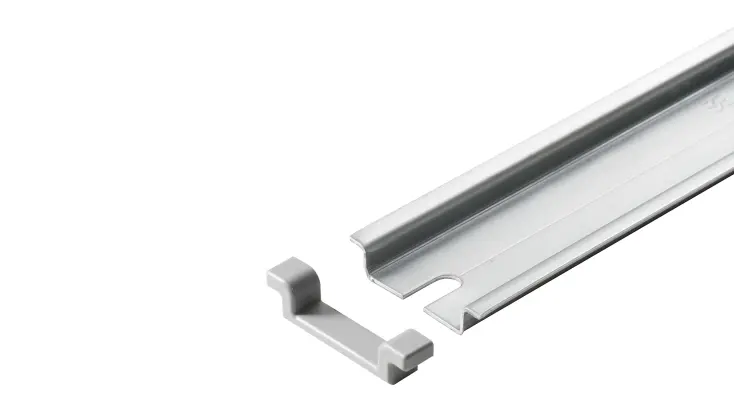

End caps for the mounting rails and top-hat rails provide protection against sharp edges and visually close off the end of the rail.

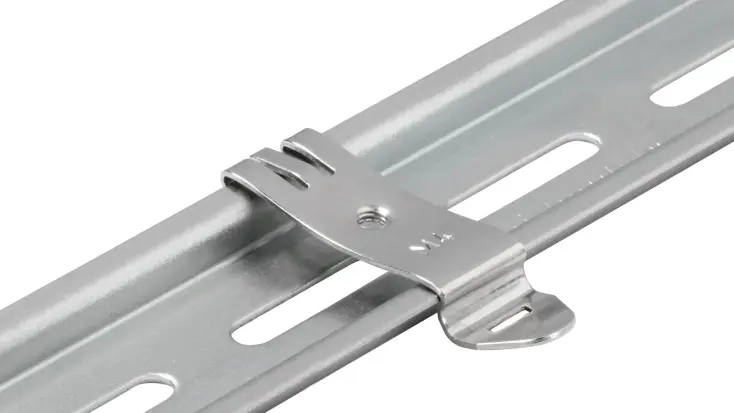

Mounting feet are used to mount components that cannot be snapped directly on a DIN rail.
DIN rails and C profiles can also be used as protective earth busbars (PE conductors) or PEN conductors under certain conditions. The Weidmüller PE terminal blocks with spring and screw connections fulfil the requirements for PE conductors defined in IEC 60947-7-2. According to VDE 0100 Part 540, protective earth conductors and neutral conductors with wire cross-sections above 10 mm2 may be combined to form a conductor abbreviated as PEN.
If a terminal rail is used as a PEN busbar, the following criteria have to be observed:
• Only profiles made of E-Cu or aluminium are permissible
• Short-circuit currents and thermal rated currents
• For the protective measure "Protective insulation", insulate DIN rails
