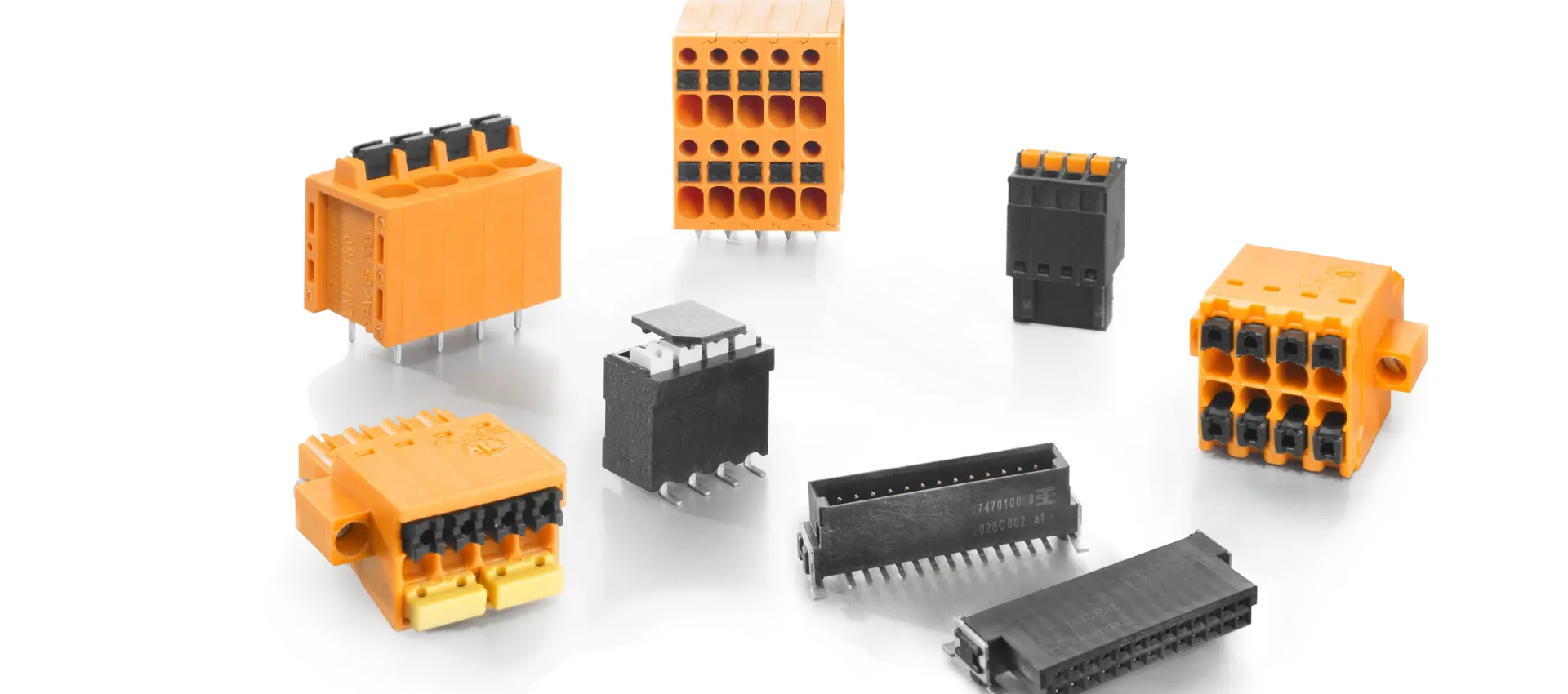

A reliable device connection is an absolute must for your customised applications. Weidmüller‘s OMNIMATE® Signal includes PCB terminals and PCB connectors for devices used in automation and control (measurement, control and feedback control systems) – in particular for sensor actuator interfaces and power supplies.
You can choose from a product range that includes extremely compact PCB terminals and connectors, which, thanks to intelligent locking concepts and high-performance connection systems, provides your design-in process with a wide range of application-specific solutions and does not set any limits on your creativity. We have also not forgotten about your production processes when formulating our product range, as our THR and SMD components ensure the highest productivity levels during the reflow soldering process.
The pluggable PCB connection is an established standard in process and manufacturing automation as well as in measurement and control technology.
The trend in industrial automation technology results in higher density in the controls and individual components. We support you for automation and systems technology.

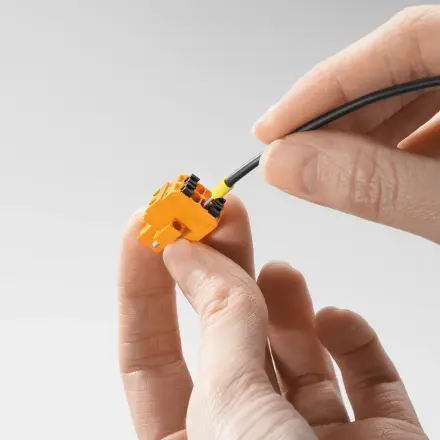

The 2-row connector B2CF is a connectivity solution for standard industrial cables in 1.75 pitch that is 30% smaller than a similar solution and features 100% of the ruggedness found.
The supply voltage to the sensors is fed in directly through the BL-I/O 3.5 female plug. The control of the sensor wiring itself can be done without subsequent I/O electronics.
Smaller devices with increased technical capabilities are designed for more applications. Their contacts are packed onto a small surface and large wire cross-section capacity.

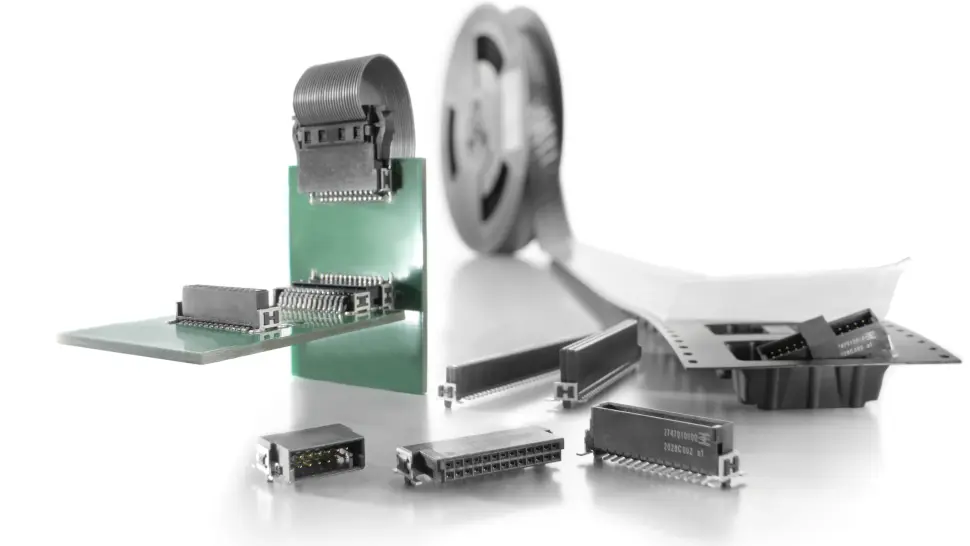

The use of future-proof contact systems, as well as the optimisation of manufacturing processes, are increasingly important in the development of efficient industrial devices, especially in the field of Industry 4.0. OMNIMATE® Signal Board-to-Board connectors feature a 1.27 mm pitch and offer maximum flexibility due to different designs.

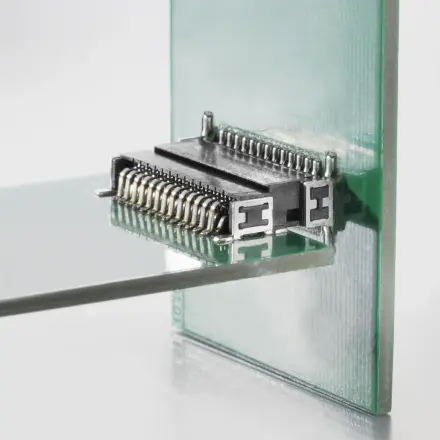

Different designs with 1.27 mm pitch enable all conceivable interface combinations – from mother-to-daughter and extender card to cable-to-board and mezzanine.

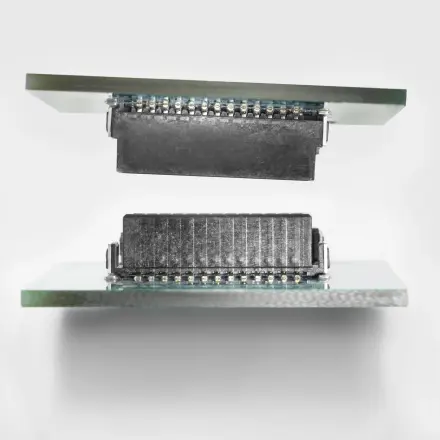

Despite its small dimensions the SMT fixation ensures reliably a simple and safe connection even possible under unfavorable mating conditions – e.g. inclination or offset.

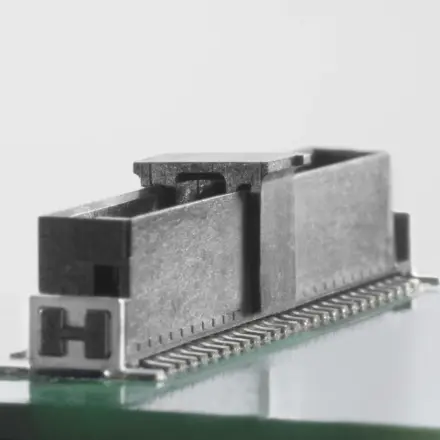

Precise pin coplanarity and packaging makes automatic assembly reliable.

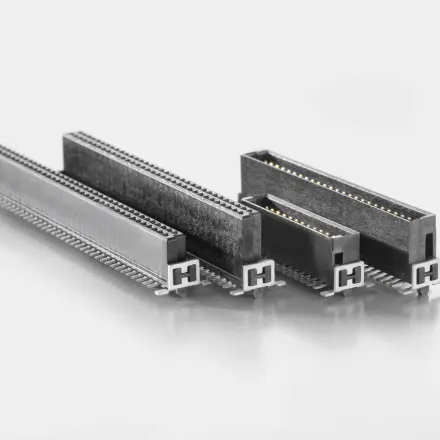

Different heights with high contact overlapping ensure various solutions from 12 – 80 poles.
The universal and direct PCB connection for industrial electronics. From clamping yoke screw connections to PUSH IN spring connections in all relevant cross-section ranges up to 6 mm².

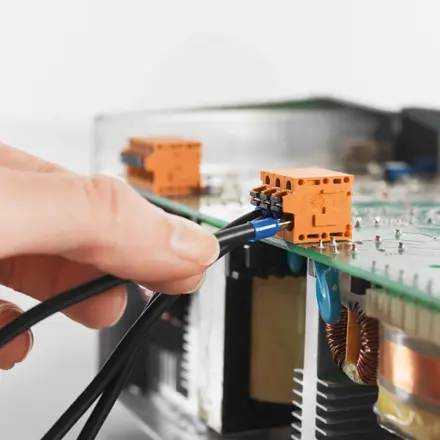

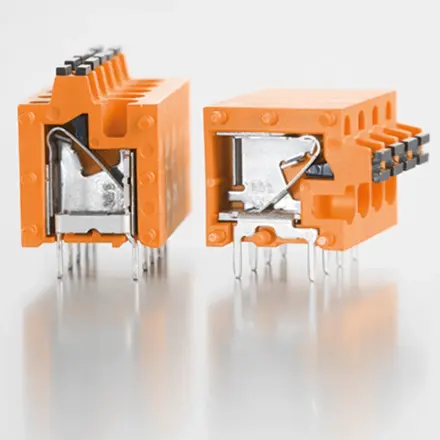

Solid wires or wires with ferrules can plugged directly thanks to the times-saving PUSH IN connection technology. The contact can be opened easily by pressing the push button.
Benefit from the highly secure, current-carrying capacity and mechanical stability on the PCB board, without additional mounting elements.

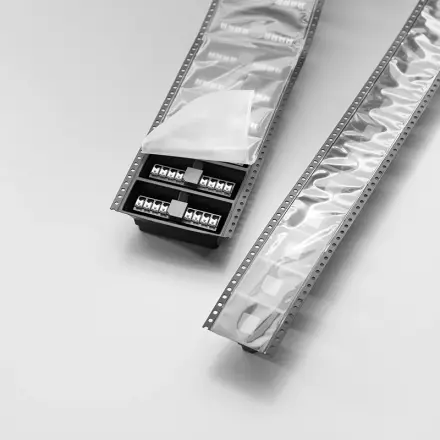

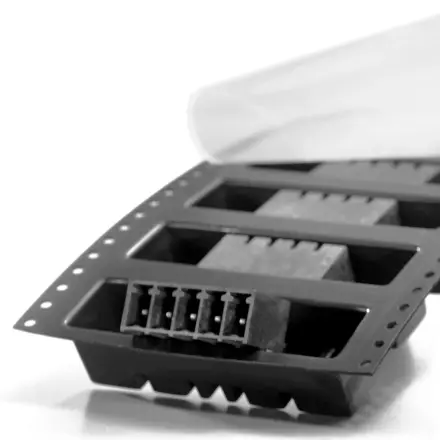

The tape on reel packaging in standard tape widths supports an efficient automatic assembly process. The optimised Pick and Place pads ensure that the pick and place process is safe and reliable.

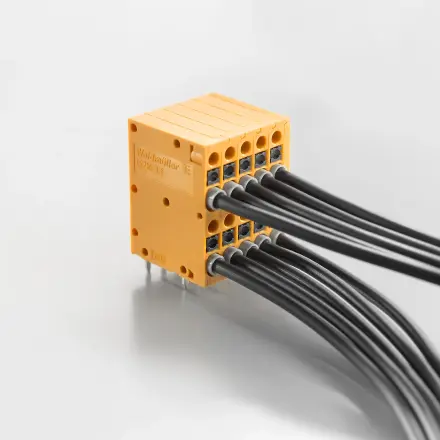

The compact design with PUSH IN connection system over two levels is perfectly suited for wire cross-sections up to 1.5 mm² in a pitch dimension of 3.5 mm.
