Connectors and sockets for data transmission are already an integral part of future-oriented device design. Weidmüller's data connectors and sockets offer convincing solutions for Industrial Ethernet.

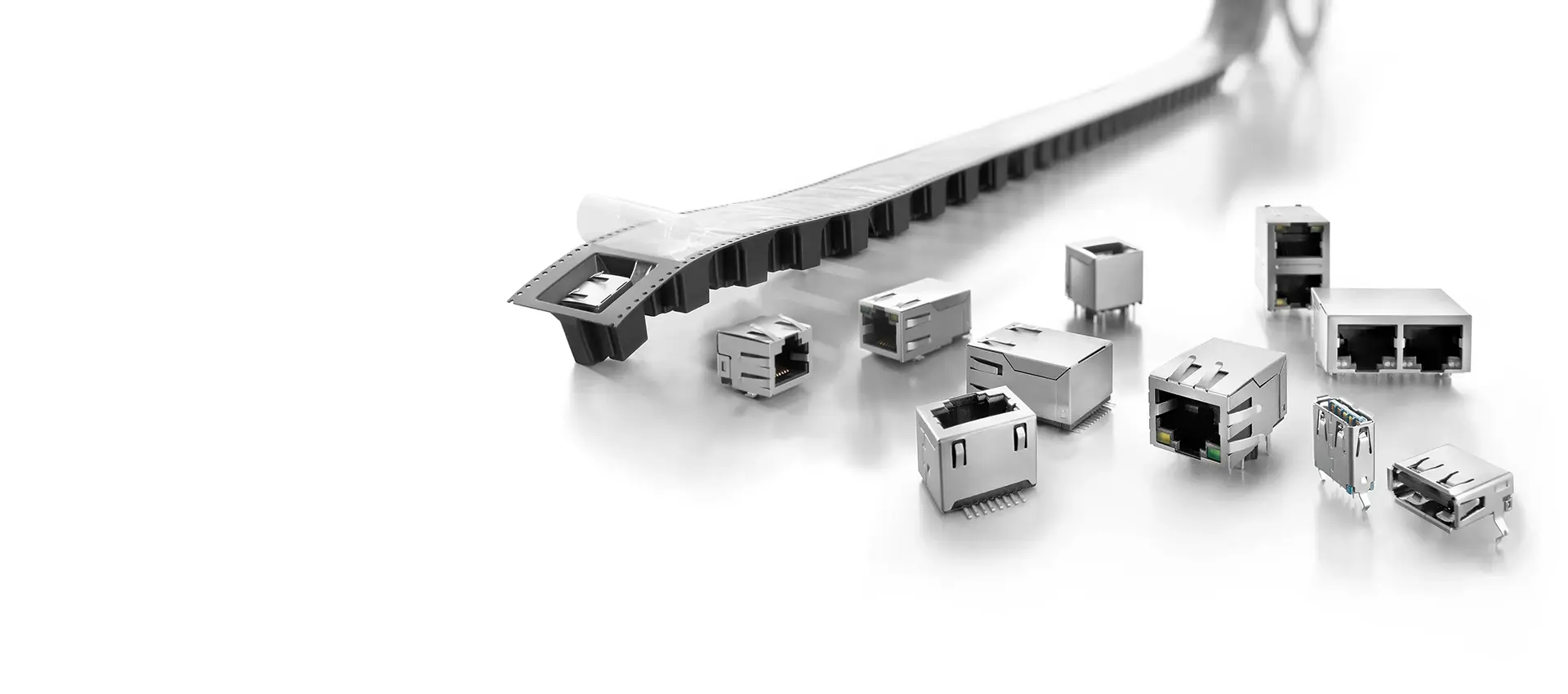

RJ45, USB jacks and SPE PCB connectors ensure a safe and efficient interface to your device. The fully shielded product range of data connectors and sockets ensures high electromagnetic compatibility, includes all common outlet angles, top and bottom snap-in hooks as well as innovative STEADYTEC® connection technology for an industrial standard design. Learn more about Weidmüller's product portfolio of standardized data connectors and PCB terminals for data transmission and the possible applications.
Fastest assembly due to sharpened pin geometry, guide pins and Tape on Reel packaging. The LCP allows THT- and THR-soldering.
With a saving of >50% compared to established data sockets, all industrial requirements are still met.
Also available as part of the OMNIMATE® 4.0 portfolio for hybrid applications, e.g. as digital encoder for motor connectors.
In the smallest installation space, a robust locking mechanism up to 50N is ensured (acoustic feedback during the mating process).
Our qualified products allow reliable data transmission at 10 Mbit/s and simultaneous power supply via twisted pair cable up to 1,000 m.
Ethernet APL is suitable for all IIoT devices and is compatible with all common protocols such as PROFINET, EtherNet/IP, or EtherCAT.
The different connection technologies are all built for high levels of contact and vibration safety. Colour-coded markings facilitate error-free installation.
Unique design-in services like our product catalogue, a free sample service and the ConnectorGuide help to find the right products for individual requirements and applications.

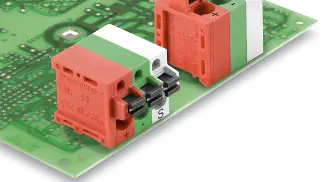

Our new PCB terminals LMF PN und LSF-SMT PN offer an interesting and cost-effective alternative to conventional connection solutions such as RJ45 or M12. They combine contact and vibration safety and simple, tool-free installation with distinctive colour coding for PROFINET.
Reliable, future-proof connection solution with PUSH IN connection technology for fast, simple, and tool-free installation.
Designed for different soldering processes (THT/THR). It installs flexibly due to different pitches and is particularly safe to mount because of coloured conductor coding.
LMF PN and LSF-SMT PN are suitable for all IoT devices, and enable Ethernet-based data transmission for all common systems such as PROFINET, EtherNet/IP or EtherCAT.
The future-proof transmission solution in the industrial environment. Designed for fully automated assembly processes and with electromagnetic compatibility and protection through 360° shielding.

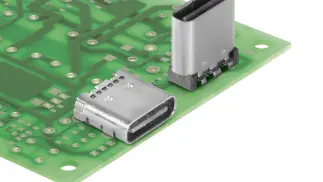

The reliable data interface for your device in industrial use. Due to the many advantages, USB sockets are always used most in the electrical industry. The extensive portfolio of USB-A, -B - C and -Micro components enables future-proof device design with speeds of up to 10 Gbit/s. Our USB PCB sockets support the robust standards USB 2.0, 3.0 and 3.1 for fast and easy data transfer. The individual connectors meet the requirements for high durability and offer reliable connectivity.
Suitable for fully automatic assembly (tape on reel) or assembly by hand (tray).
High placement precision due to shorter solder pins (PiP soldering) with chamfered pin tops.
Our products allow reliable PCB assembly for each of the technologies, SMT, THT or THR soldering, and for any assembly process.
Established locking systems in combination with polarisation and protection of the contacts fulfil standards in electronical applications.
With our OMNIMATE® services, we can help you and your business achieve the highest possible levels of efficiency. You can reduce your product costs and benefit from our support across all phases of your project. Save valuable time with an application or product-oriented search using our ConnectorGuide and make a quick selection with our web configuration tool.
Feel free to contact our experts for more information on our data connectors or if anything is unclear. Simply use the services of our support centre. We’ll help you identify the ideal solution for your needs. Are you unsure about how to properly mount our data connectors? If so, as well as contacting our customer support team, you can also watch one of our handling videos . You can find these in our online product catalogue or by scanning the QR code on the product itself.
We provide you with information on our OMNIMATE® Data components for the Industrial Ethernet environment for download. Download our quick overview or our product catalogue to find exactly the RJ45, USB and SPE connectors for the PCB you need.
Whether you come to us as a device developer, product manager or buyer, we promise you efficiency, speed and tailored solutions. Weidmüller is your perfect partner for PCB connectors and PCB terminals. You can rely on our expertise and know-how. Working with you, we’ll find the products that meet your requirements.
Do you have questions about our products and services or would you like an individual offer? Simply fill out contact form. Our employees will contact you as soon as possible.
